Vandal Stop Products

Vandal Resistant High Capacity Jumbo Roll Toilet Paper Holder

VSP-JRDx1-304L-12g

New product

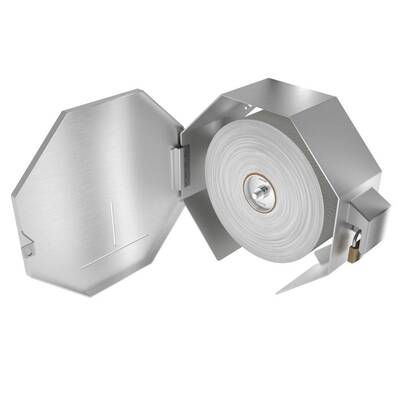

The Jumbo Roll Dispenser Toilet Paper Holder (VSP-JRDx1) accommodates any and all toilet tissue roll sizes including the gigantic jumbo roll 14" 2000 foot paper. These large capacities are ideal for restrooms that see extra high use. This unit was first developed to meet the traffic and heavy use of Highway Rest Stop facilities operated by Washington State D.O.T.

Note!!! This product has been updated with a newer version, the AA-JRDx1.

ADA Compliant Dispensing

Spec Sheet (PDF)

Mounting Hardware for Warranty Coverage Against Vandalism

Mounting Hardware for Warranty Coverage Against Vandalism AND Theft

Warranty Information Card

Mounting Hardware Fact Sheet

More details

Combinations:

$228.00

$318.00

$330.00

$363.00

Made to Order: Qty 1 to 10 Ships in 1 to ~2 Weeks; Qty 10+ Ships in 2 to ~4 Weeks

More Info

Note!!! This product has been updated with a newer version, the AA-JRDx1. While this product is currently still available, it is being phased out in favor of the new and updated design with more security features. Please consider ordering the newer product and updating your specifications where possible.

Public Restroom Facility Designed For:

The VSP-JRDx1 is intended for remote outhouse facilities that need the best flexibility in paper use and capacity.

Anti-Vandalism Features:

The VSP-JRDx1 is available in 12 gauge Stainless Steel that will stand up to heavy use, abuse and vandalism. Featuring a shrouded lock, vandals and thieves will be foiled should they attempt to cut the lock with heavy duty cutters. The strength of the unit also comes from its unique octagon shape that provides extremely good structural rigidity.

Corrosion Resistance:

This product is available in 304L Stainless Steel and 316L Stainless Steel. For most restroom facilities, 304L is the most cost effective solution. It provides good corrosion resistance in non-salt water environments. 316L is preferred by our customers that are located near or on the ocean. Navy ships and public facilities at beaches should opt for the 316L material.

Toilet Paper Capacity:

The VSP-JRDx1 toilet paper dispenser is one of our most versatile washroom accessories. It can accommodate a high capacity jumbo roll toilet paper up to 14” in diameter and any jumbo roll toilet paper up to that size. It also easily accommodates coreless toilet paper for even higher capacities. Should you desire to incorporate standard toilet paper size rolls for your public facility, there is an optional 5 spindle carousel (see VSP-JRDx5) that allows for 5 rolls of standard tissue sizes up to 5” in diameter. This washroom accessory is also drip deflective that will protect the paper from errant water during hose down cleaning.

ADA Compliance:

The VSP-JRDx1 toilet paper dispensers are ADA compliant when properly mounted and installed.

Customers of this Product:

Past customers that are interested in the VSP-JRDx1 toilet paper dispenser include Public School Districts facing facility abuse from their students, Public Parks, Fast Food franchises such as McDonald's & Taco Bell, Remote facilities such as outhouses in the National Forest.

Features:

  • Vandal Resistant

  • Spray and Drip Deflective

  • Protective Shroud for Padlock

  • Surface Mounted

  • Accommodates Multiple Paper Styles

  • Corrosion Resistant

  • Industry Leading Warranty against Vandalism

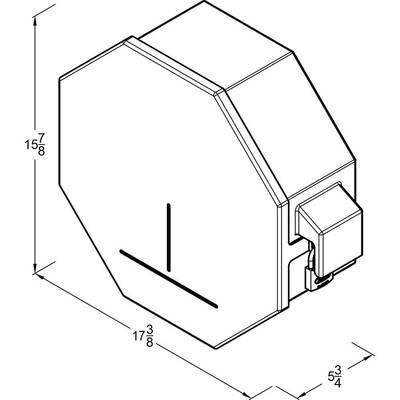

Dimensions:

  • 17” x 15 ½” x 5 ¾” (WxHxD)

Material Options:

  • 12-gauge 304L Stainless Steel

  • 14-gauge 304L Stainless Steel

  • 12-gauge 316L Stainless Steel

Model Names:

  • VSP-JRDx5-304L-12g

  • VSP-JRDx5-304L-14g

  • VSP-JRDx5-316L-12g

Finish:

  • Stainless Steel Satin # 4 Finish

Mounting:

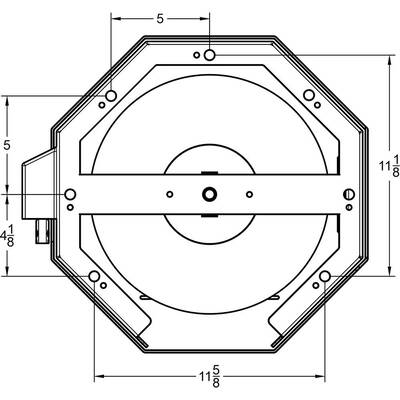

  • 3/8” Mounting Hole Placements

Capacity:

  • 5 Standard Core 5” Rolls

  • 5 High Density 5” Coreless Rolls

Installation:

Secure fixture to wall with appropriate 1⁄2” stainless steel anchoring hardware for optimal installation strength (not provided). Recommend 3⁄4” or greater back bracing for walls. Partitions may require T-nuts or other suitable anchoring devices. When possible it is recommended that units be through bolted back-to-back providing optimal installation strength.

Guide Specification:

Dispenser shall be constructed with American made, 12 or 14 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Dispenser shall not be cross-metal contaminated during manufacturing construction. Dispenser housing shall provide protective cover for tissue paper against drip and spray. Protective shroud adds security for padlock. Dispenser shall have 3⁄8” mounting holes. Dispenser shall accept multiple paper styles. 12 Gauge models shall include a 10 year standard or 20 year optional functional warranty against vandalism when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
