Vandal Proof Recessed Single-Gang Outlet Security Box with Hitch Lock
Product Overview

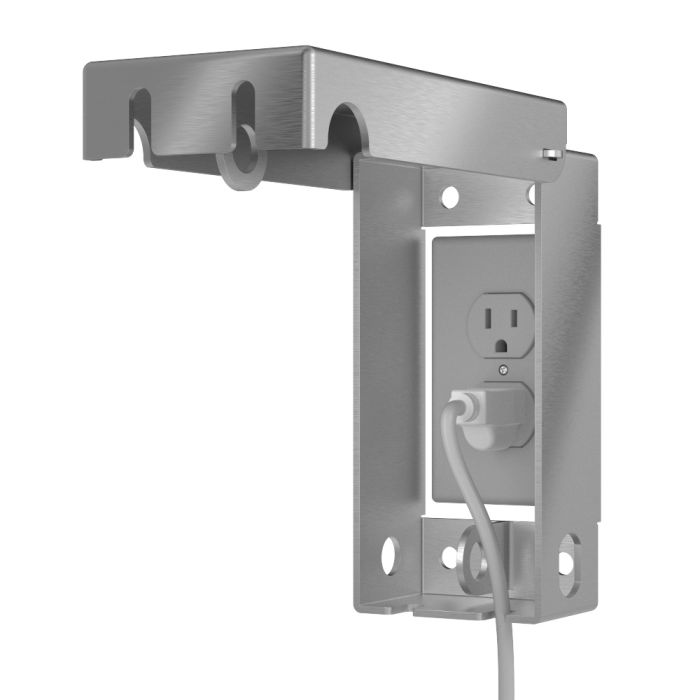

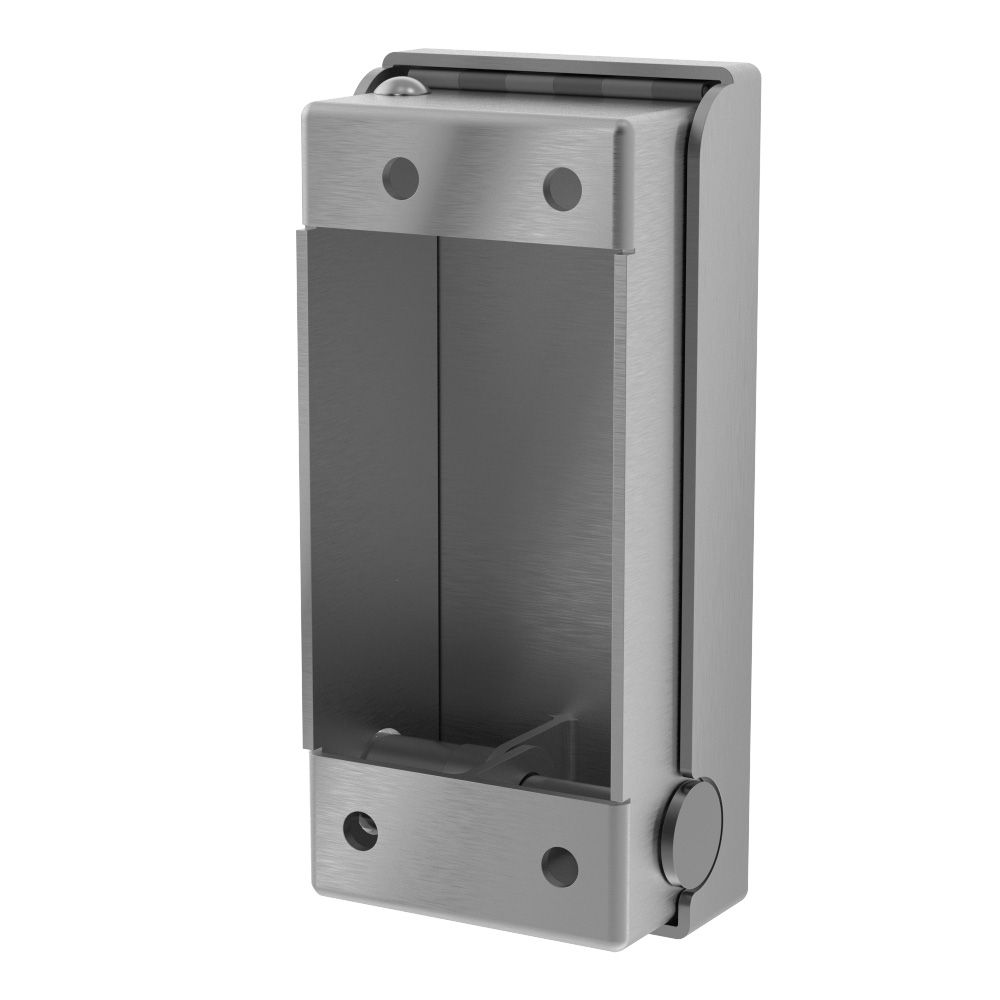

The AA-EB-1G-HL-LP is a low-profile, high-security outlet enclosure designed specifically for recessed single-gang electrical box applications. Crafted from 12-gauge stainless steel and secured with a cross bar hitch lock system, it provides reliable protection against vandalism, tampering, and weather exposure in high-traffic public environments. The compact 2½” depth makes it ideal for tight spaces or walls where flush-mounted or recessed installations are critical. Rear and bottom conduit access points ensure compatibility with existing infrastructure, while the removable backplate allows easy setup and service access.
Note 1: Hitch lock is included.
Note 2: Keyed alike available upon request.
Note 3: Receptacle outlet is not included with the housing. Most boxes on the market should fit, but for a known receptacle box that was tested to fit, Click here for 1 Gang - Weatherproof Electrical Outlook Box and Cover.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-1G-HL-LP does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Low Profile Recessed Design: Slim 2½” depth allows flush integration in confined spaces or recessed wall cavities.
- Cross Bar Hitch Lock: Unique locking system provides tamper-resistant security with easy access for authorized personnel.
- Vandal Resistant Construction: 12-gauge 304L or 316L stainless steel offers exceptional resistance to impact and corrosion.
- Spray & Drip Deflection: Engineered housing protects internal components from environmental moisture and debris.
- Rear & Bottom Conduit Access: Accepts ½” and ¾” conduit (up to 0.922" OD) for installation flexibility.
- LEED Compliant: Manufactured using recyclable stainless steel to support sustainable building practices.
- Made in the USA: Expertly TIG-welded, deburred, and finished for long-lasting durability and professional appearance.
Material & Warranty Options
Available in standard 12-gauge 304L stainless steel or marine-grade 316L for saltwater environments. Both options include a corrosion-resistant Satin #4 brushed finish. When properly installed and locked, this 12-gauge unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility

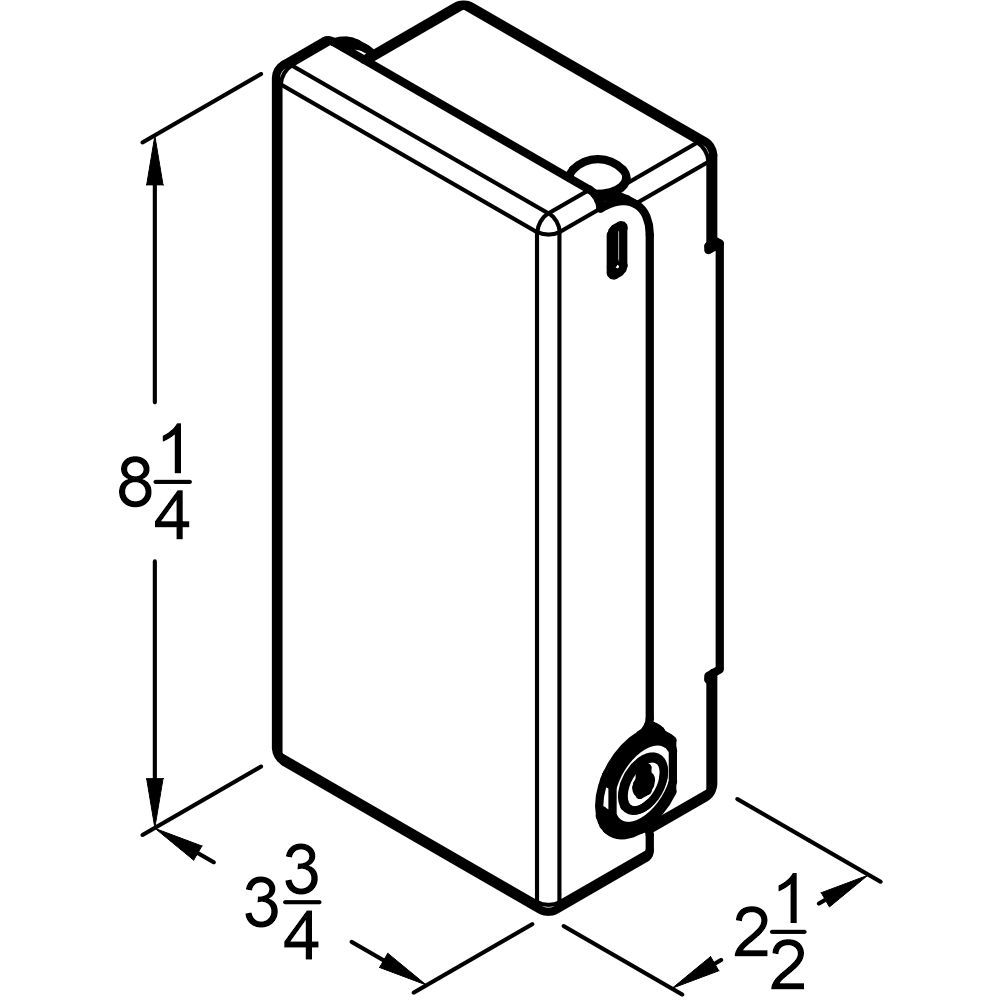

- Exterior Dimensions: 3 ¾” W x 8 ¼” H x 2 ½” D
- Interior Dimensions: 3 ¼” W x 7 ½” H x 2¼” D
- Rear Opening: 3 ¼” W x 5 ⅛” H
- Weight: 4.5 lbs
- Compatibility: Fits most standard single-gang duplex receptacle boxes (not included). Specifically designed for compatibility with the Greenfield B23BRS Box and Greenfield CDRVPS Weatherproof Cover.
- Models: AA-EB-1G-HL-LP-304L-12g, AA-EB-1G-HL-LP-316L-12g
Installation Guidance
Secure fixture to the wall with appropriate 3⁄8” stainless steel anchoring hardware (not provided) for optimal installation strength. We recommend 3⁄4” or greater back bracing for walls. Partitions may require T-nuts or other suitable anchoring devices. When possible, it is recommended that units be through-bolted back to back, providing optimal installation strength. The removable backplate supports recessed and flush wall mounting applications.
Specification Guide
Outlet Security Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Outlet Security Box shall not be cross-metal contaminated during manufacturing construction. Outlet Security Box shall provide protective cover against drip and spray. Outlet Security Box shall be secured with Keyed Hitch Lock. Outlet Security Box shall have 3⁄8” mounting holes. Security Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Above
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
