The AA-HRTDx3E is a Vandal Proof heavy-duty three-roll toilet paper holder designed for facilities that demand maximum durability and tamper resistance. Featuring a protected padlock shroud and fabricated from 12 or 16 gauge stainless steel, this unit withstands abuse in correctional, transit, and industrial environments. Made in the USA and backed by a 10-year warranty on 12-gauge models.
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Below
Engineered for high-risk restrooms, the AA-HRTDx3E features a heavy-duty shroud-protected padlock enclosure to deter tampering and unauthorized access. This industrial-grade dispenser stores up to three toilet paper rolls in a compact, space-saving form factor. Constructed from durable 12 or 16 gauge stainless steel and made in the USA, it's ideal for jails, shelters, transit stations, and other high-traffic public facilities where vandalism is a concern.
Product Features:
- Vandal Resistant Design: Withstands prying, blunt force, and tampering attempts.
- Industrial Grade Construction: Fabricated with 12 or 16 gauge 304L or 316L stainless steel for long-term durability.
- Protected Locking System: Integrated shroud protects padlock from tampering tools and impact.
- Made in USA: Precision-built with American-sourced materials and quality-controlled fabrication.
- Drip Deflective Housing: Keeps paper rolls dry and shielded from spray or splashes.
- Surface Mounted: Securely attaches to solid surfaces with 3/8” hardware (not included).

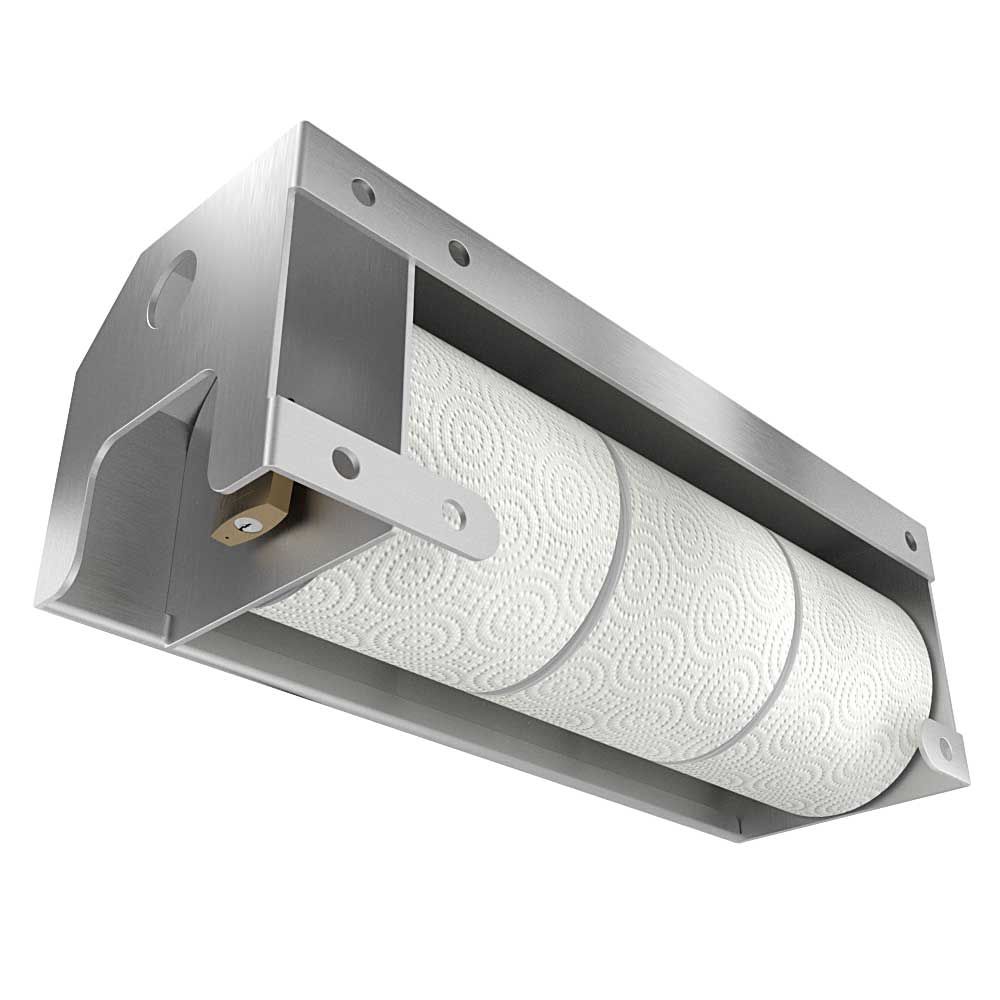

- Multi-Roll Compatibility: Holds three standard core or coreless toilet paper rolls up to 5” in diameter.
- Corrosion Resistant: Optional 316L stainless steel available for saltwater or maritime applications.
- 10-Year Vandalism Warranty: 12-gauge models include a full decade of coverage for vandal-related damage.
- Sustainable Materials: Constructed using recyclable stainless steel suitable for LEED projects.
Dimensions & Weight:

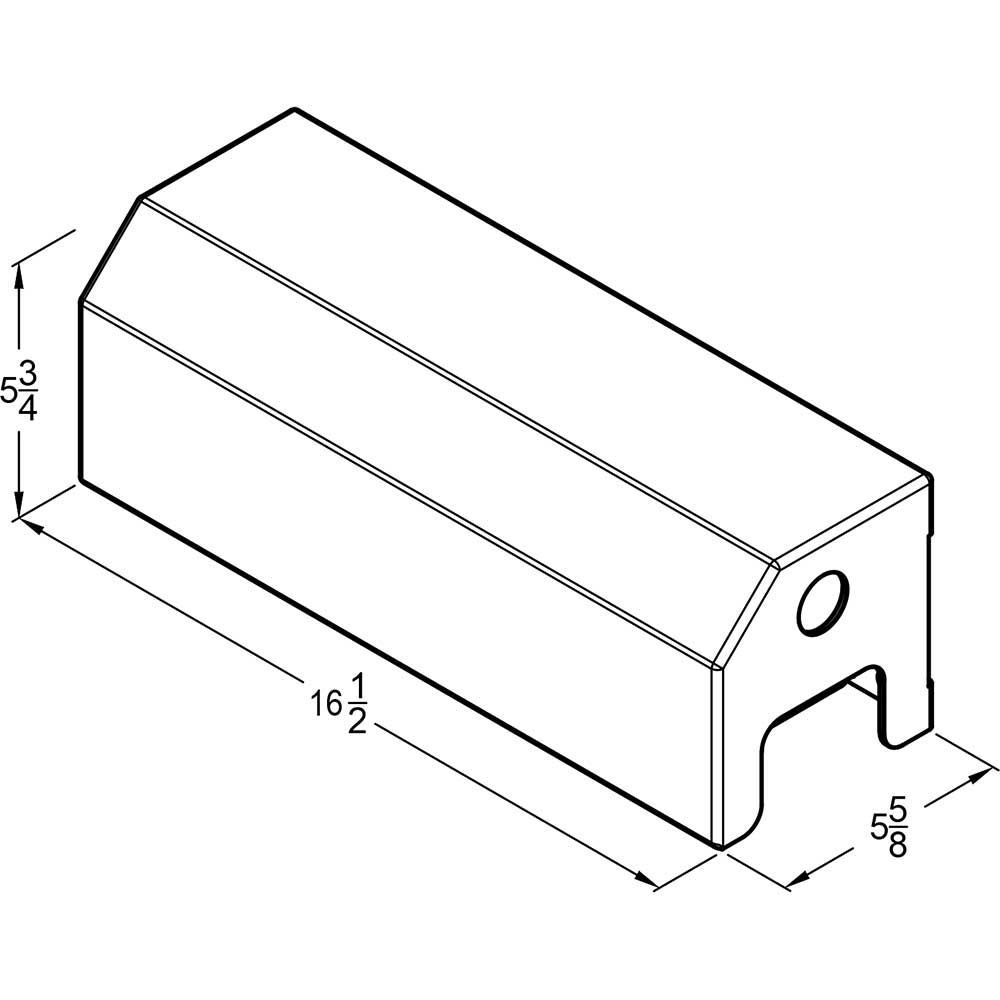

Dimensions: 16½” W x 5¾” H x 5⅝” D
Weight: 11 lbs (12-gauge), 6.5 lbs (16-gauge)
Material & Finish:
Available in 12 or 16 gauge 304L stainless steel, with a 12 gauge 316L option for extreme environments. Finished in Satin #4 brushed stainless steel for a modern, low-maintenance appearance.
Material Options:
- 12 gauge 304L Stainless Steel
- 16 gauge 304L Stainless Steel
- 12 gauge 316L Stainless Steel
Model Names:
- AA-HRTDx3E-304L-12g
- AA-HRTDx3E-304L-16g
- AA-HRTDx3E-316L-12g
Mounting Instructions:
Mounts with 3/8” stainless steel hardware (not included). For maximum durability, install with ¾” back bracing or through-bolting. For partitions, use T-nuts or appropriate anchors. Proper installation is required for warranty validation.
Roll Compatibility:
Compatible with rolls up to 5" diameter, including:
- Scott Professional Standard Roll – 100% Recycled
- Georgia Pacific Compact Coreless Recycled
- Scott Essential Coreless High Capacity
Compare with Competitor Models:
Many competing dispensers like the Bobrick B-27460 or Royce Rolls Ringer TP-3 use thinner 18-gauge metal and offer minimal warranty protection. The AA-HRTDx3E is built from solid 12-gauge steel and includes a 10-year vandalism warranty—if it's damaged due to vandalism, we repair or replace it. The lock shroud further enhances security, setting this model apart from all others in the market.
