Product Overview

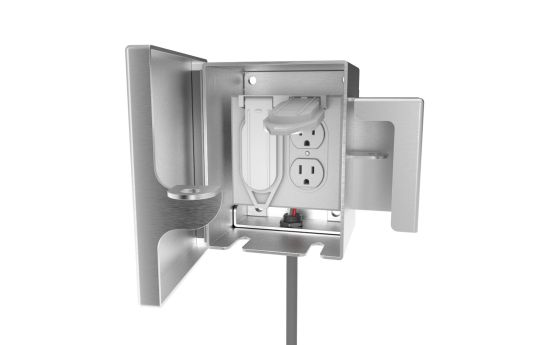

The AA-EB-2G-PL is a high-security, surface-mounted lock box designed to safeguard double-gang electrical outlets in public, commercial, and military-grade settings. Fabricated from heavy-duty 12-gauge stainless steel, this box resists prying, impacts, corrosion, and unauthorized access. It features a concealed padlock shroud for added security against tampering tools and weather, and accommodates both ½” and ¾” conduit through rear and bottom ports. Designed to replace the older AA-EB-4R, this improved version includes a removable backplate for recessed or surface mounting and enhanced service access.
Note 1: Keyed-alike padlock is optional.
Note 2: Receptacle outlet is not included with the housing.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-2G-PL does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Vandal Resistant Construction: Made from 12-gauge stainless steel to withstand abuse, tampering, and extreme conditions.
- Integrated Padlock Shroud: Conceals the lock to prevent tampering and enhance long-term security in public areas.
- Water & Debris Shielding: Built to deflect spray, rain, and dripping liquids from entering the box.
- Dual Conduit Entry: Allows ½” and ¾” conduit access (up to 0.922" OD) through both the rear and bottom.
- LEED-Compliant Design: Manufactured with recyclable stainless steel for green building applications.
- Made in the USA: Constructed with TIG welds and de-burred edges for durability and finish quality.
Material & Warranty Options
Available in 12-gauge 304L stainless steel for standard use, or 12-gauge 316L stainless steel for maritime and saltwater environments. Both feature a Stainless Steel Satin #4 finish for corrosion resistance and a clean professional appearance. When properly installed and locked, this unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility
- Exterior Dimensions: 8 ⅛” W x 7 ½” H x 4 ¾” D
- Interior Dimensions: 5” W x 7” H x 4 ⅜” D
- Rear Opening: 5” W x 5” H
- Weight: 9 lbs
- Compatibility: Fits most double-gang duplex receptacle boxes (not included). Specifically designed to work with the Greenfield B232BRS Box and Greenfield C2GFI2PS Weatherproof Cover.
- Models: AA-EB-2G-PL-304L-12g, AA-EB-2G-PL-316L-12g
Installation Guidance
Mounts via 3/8” anchor holes (hardware not included). Back bracing of ¾” or greater is recommended for maximum strength. Through-bolting or T-nuts may be required on partitions. The removable backplate supports surface or recessed mounting options.
Specification Guide
Security Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Security Box shall not be cross-metal contaminated during manufacturing construction. Security Box shall provide protective cover against drip and spray. Security Box shall be secured with Padlock. Security Box shall have 3⁄8” mounting holes. Security Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Above
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
