Vandal Proof Double-Gang Outlet Security Box with Hitch Lock
Product Overview

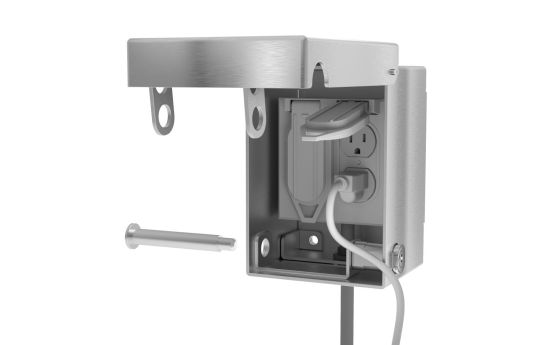

Designed for extreme abuse resistance, the AA-EB-2G-HL is a heavy-duty, surface-mounted electrical enclosure built to protect double-gang receptacles from tampering and unauthorized access. Fabricated from thick 12-gauge stainless steel and secured with a reinforced cross bar hitch locking system, it offers superior protection against vandalism and corrosion in harsh environments. With integrated spray deflection, rear and bottom conduit knockouts, and a removable backplate that supports recessed or surface installs, it is the ideal rugged solution for securing exposed power access points in military bases, transit systems, schools, parks, and other high-risk public environments.
Note 1: Hitch lock is included.
Note 2: Keyed alike available upon request.
Note 3: Receptacle outlet is not included with the housing. Most boxes on the market should fit, but for a known receptacle box that was tested to fit, Click here for 2 Gang - Weatherproof Electrical Outlook Box and Cover.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-2G-HL does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Heavy-Duty Vandal Resistance: Constructed from 12-gauge stainless steel to resist abuse, prying, and impact.
- Cross Bar Hitch Lock: Locking system provides enhanced security and tamper resistance with a low-profile design.
- Spray & Debris Deflection: Engineered to deflect water, dirt, and spray from entering the box.
- Flexible Conduit Access: Accepts both ½” and ¾” conduit (up to 0.922" OD) through bottom and rear knockouts.
- LEED Compliant Materials: Made from recyclable stainless steel to meet green building standards.
- Made in the USA: Precision TIG-welded, deburred, and finished for long-term use and a professional appearance.
Material & Warranty Options
Available in 12-gauge 304L stainless steel or marine-grade 316L stainless steel for salt-exposed environments. All models feature a Satin #4 brushed finish to resist corrosion and maintain aesthetic appeal. When properly installed and locked, this unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility
- Exterior Dimensions: 5 ½” W x 8 ¼” H x 4 ¾” D
- Interior Dimensions: 5” W x 7 ½” H x 4 ⅜” D
- Rear Opening: 5” W x 5” H
- Weight: 8.5 lbs
- Compatibility: Compatible with most standard double-gang duplex receptacle boxes (not included). Specifically designed for the Greenfield B232BRS Box and Greenfield C2GFI2PS Weatherproof Cover.
- Models: AA-EB-2G-HL-304L-12g, AA-EB-2G-HL-316L-12g
Installation Guidance
Secure fixture to wall with appropriate 3⁄8” stainless steel anchoring hardware (not provided) for optimal installation strength. Recommend 3⁄4” or greater back bracing for walls. Partitions may require T-nuts or other suitable anchoring devices. When possible it is recommended that units be through-bolted back to back providing optimal installation strength.
Specification Guide
Security Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Security Box shall not be cross-metal contaminated during manufacturing construction. Security Box shall provide protective cover against drip and spray. Security Box shall be secured with Bar Style Hitch Lock. Security Box shall have 3⁄8” mounting holes. Security Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Above
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
