Vandal Resistant Double Gang Outlet Security Box with Keyed CAM Lock
Product Overview

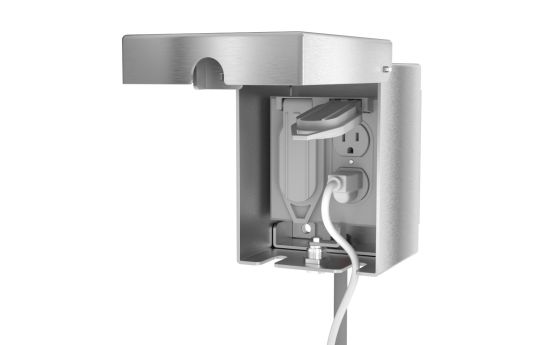

The AA-EB-2G-CL offers dependable protection for double-gang electrical outlets in public, industrial, and military applications. Crafted from heavy-duty 12-gauge stainless steel, this security box resists tampering, corrosion, and environmental damage. Its sleek, concealed keyed cylinder lock provides discreet yet effective protection without exposed latch points, while the removable backplate allows for surface or recessed installation. Designed for harsh environments and long-term durability, this USA-made enclosure is ideal for securing power access in high-risk settings.
Note 1: Keyed alike.
Note 2: Receptacle outlet is not included with the housing. You will need to source an appropriate weatherproof outdoor outlet box to fit inside of the housing.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-2G-CL does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Vandal Resistant Construction: Made from thick 12-gauge stainless steel to resist abuse, prying, and blunt force.
- Hidden Keyed Cylinder Lock: Offers streamlined security with no exposed latch points or padlocks.
- Spray & Drip Protection: Deflects water and debris, making it ideal for indoor and outdoor use.
- Conduit Flexibility: Supports ½” and ¾” conduit (up to 0.922" OD) via rear and bottom knockouts.
- LEED Compliant Materials: Constructed using sustainable, recyclable stainless steel.
- Made in the USA: Manufactured domestically using TIG welds and deburred edges for long-lasting quality and safety.
Material & Warranty Options
Available in 12-gauge 304L stainless steel or 316L stainless steel for marine and saltwater applications. Both options feature a corrosion-resistant Satin #4 brushed finish. When properly installed and locked, this unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility
- Exterior Dimensions: 5 ⅝” W x 7 ¾” H x 4 ¾” D
- Interior Dimensions: 5” W x 7” H x 4 ⅜” D
- Rear Opening: 5” W x 4 ¾” H
- Weight: 8 lbs
- Compatibility: Compatible with most standard double-gang duplex receptacle boxes (not included), including the Greenfield B232BRS Box and Greenfield C2GFI2PS Weatherproof Cover.
- Models: AA-EB-2G-CL-304L-12g, AA-EB-2G-CL-316L-12g
Installation Guidance
Designed for secure surface mounting via four 3/8” anchor holes (hardware not included). For optimal performance, use ¾” or thicker back bracing. Partition installations may require T-nuts or through-bolting to ensure warranty compliance. The removable backplate allows for both surface and recessed mounting.
Specification Guide
Security Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Security Box shall not be cross-metal contaminated during manufacturing construction. Security Box shall provide protective cover against drip and spray. Security Box shall be secured with Keyed Cylinder Lock. Security Box shall have 3⁄8” mounting holes. Security Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Above
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
