Discontinued - Vandal Resistant Single Gang Electrical Outlet Lock Box with Key Lock
Product Overview

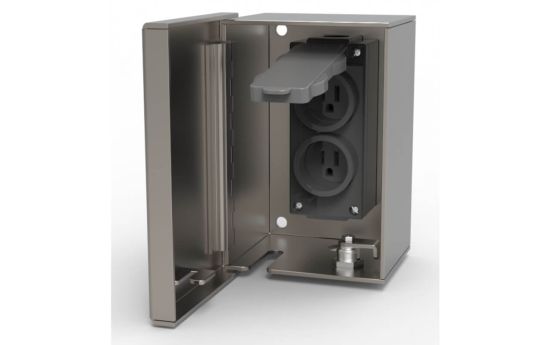

The AA-EB-5R is a heavy-duty, vandal-resistant outlet lock box designed to protect single-gang electrical receptacles in exposed or high-risk environments. Built from robust 12-gauge stainless steel and secured with a concealed keyed cylinder lock, it effectively resists tampering, corrosion, and weather exposure. Ideal for schools, parks, transit hubs, and military installations, this USA-made box features bottom-only conduit access and a removable backplate for straightforward installation.
Note 1: Replaced by the AA-EB-1G-CL.
Note 2: Keyed alike.
Note 3: Receptacle outlet is not included with the housing. Most boxes on the market should fit, but for a known receptacle box that was tested to fit, click here.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-5R does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Vandal Resistant Construction: 12-gauge stainless steel body with a tamper-resistant design to deter abuse and forced entry.
- Keyed Cylinder Lock: Hidden and secure locking mechanism for added security in public spaces without exposed padlocks.
- Weather-Resistant Design: Engineered to deflect spray and dripping liquids from internal components.
- Bottom Conduit Access: Accepts 1/2" conduit (up to 0.8" OD) through the bottom only (rear access not supported on this legacy model).
- LEED-Compliant Construction: Made from sustainable, recyclable stainless steel to meet green building certifications.
- Made in the USA: Manufactured domestically using TIG welds and deburred edges to ensure top-tier finish and performance.
Material & Warranty Options
Constructed from either 12-gauge 304L stainless steel or 12-gauge 316L stainless steel (marine-grade for saltwater applications), finished in a corrosion-resistant Satin #4 surface. When properly installed and locked, this unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility
- Exterior Dimensions: 5” W x 7 ⅝” H x 4” D
- Interior Dimensions: 3 ¾” W x 5 ¼” H x 3 ½” D
- Weight: 7 lbs
- Compatibility: Compatible with most standard single-gang duplex receptacle boxes, including the Greenfield B23BRS Box and Greenfield CDRVPS Weatherproof Cover. Fits 1/2" conduit through bottom access.
- Models: AA-EB-5R-304L-12g, AA-EB-5R-316L-12g
Installation Guidance
Secure fixture to wall with appropriate 3⁄8” stainless steel anchoring hardware (not provided) for optimal installation strength. Recommend 3⁄4” or greater back bracing for walls. Partitions may require T-nuts or other suitable anchoring devices. When possible it is recommended that units be through-bolted back to back providing optimal installation strength.
Specification Guide
Security Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Security Box shall not be cross-metal contaminated during manufacturing construction. Security Box shall provide protective cover against drip and spray. Security Box shall be secured with Keyed Cylinder Lock. Security Box shall have 3⁄8” mounting holes. Security Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
