Product Overview

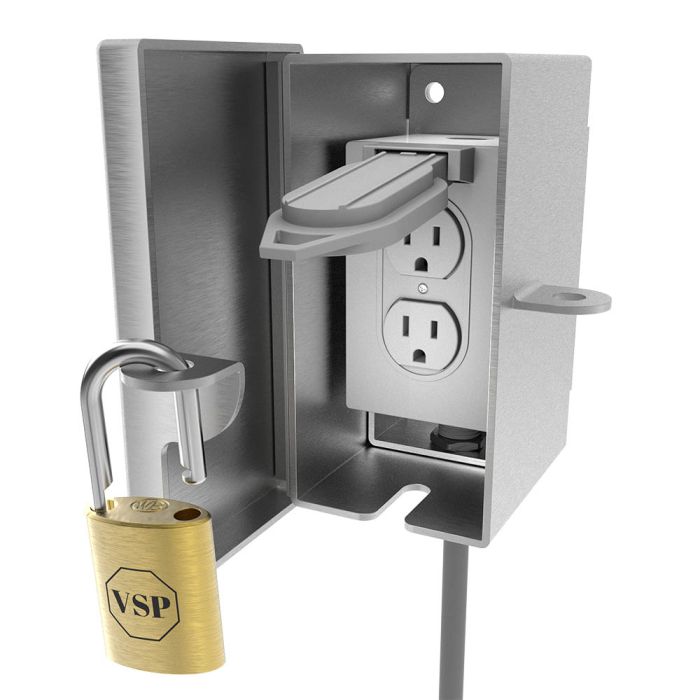

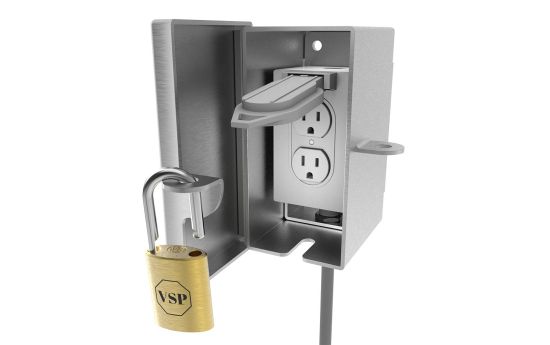

The AA-EB-1G-OL outlet lock box provides simple, secure protection for single-gang duplex receptacle boxes in high-risk or exposed public environments. Constructed from heavy-duty 12-gauge stainless steel, this enclosure resists tampering, corrosion, and moisture intrusion. A removable backplate supports both surface and recessed installations, while ½” and ¾” conduit access points on the rear and bottom offer layout flexibility. Designed to be secured with a user-provided padlock, this durable model is ideal for schools, parks, military sites, apartment complexes, and commercial facilities.
Note 1: Padlock is not included.
Note 2: Receptacle outlet is not included with the housing. Most boxes on the market should fit, but for a known receptacle box that was tested to fit, Click here for 1 Gang - Weatherproof Electrical Outlook Box and Cover.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-1G-OL does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Vandal Resistant Design: Built from 12-gauge stainless steel to prevent bending, prying, and unauthorized access.
- Padlock Secured Access: Easy-to-use padlock-ready latch (padlock not included) offers secure closure without proprietary hardware.
- Weather Deflection: Engineered to block spray, drips, and debris from damaging internal components.
- Flexible Conduit Access: Supports ½” and ¾” conduit up to 0.922" OD via rear and bottom ports.
- LEED Compliant Materials: Manufactured with recyclable stainless steel to support green building standards.
- Made in the USA: Precision TIG-welded and de-burred for smooth edges and lasting durability.
Material & Warranty Options
Available in marine-grade 316L or standard 304L stainless steel — both in a corrosion-resistant Satin #4 finish for aesthetic durability. When properly installed and locked, this 12-gauge unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility
- Exterior Dimensions: 5 ⅛” W x 7 ½” H x 4 ¾” D
- Interior Dimensions: 3 ¼” W x 7” H x 4 ⅜” D
- Rear Opening: 3 ¼” W x 5” H
- Weight: 6 lbs
- Compatibility: Compatible with most standard single-gang duplex receptacle boxes (not included), including the Greenfield B23BRS Box and Greenfield CDRVPS Weatherproof Cover.
- Models: AA-EB-1G-OL-304L-12g, AA-EB-1G-OL-316L-12g
Installation Guidance
Secure fixture to wall with appropriate 3⁄8” stainless steel anchoring hardware (not provided) for optimal installation strength. Recommend 3⁄4” or greater back bracing for walls. Partitions may require T-nuts or other suitable anchoring devices. When possible it is recommended that units be through-bolted back to back providing optimal installation strength. Removable backplate supports both surface and recessed installations.
Specification Guide
Outlet Lock Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Outlet Lock Box shall not be cross-metal contaminated during manufacturing construction. Outlet Lock Box shall provide protective cover against drip and spray. Outlet Lock Box shall be secured with easy access padlock. Outlet Lock Box shall have 3⁄8” mounting holes. Outlet Lock Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Above
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
