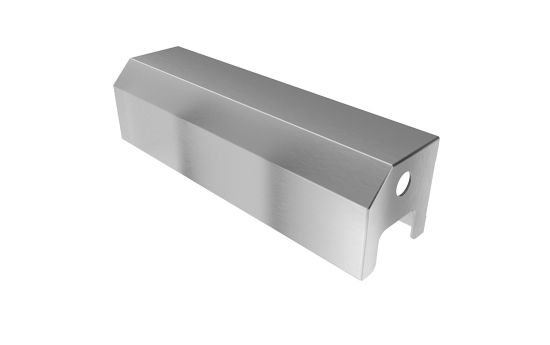

The AA-HRTDx4E is a Vandal Proof high-security, four-roll toilet paper dispenser constructed from 12 or 16 gauge stainless steel. With a heavy-duty lock shroud and fully enclosed design, this USA-made unit is built for vandal-prone environments such as correctional facilities and public transportation hubs. It accepts both standard and coreless rolls and includes a 10-year anti-vandal warranty on 12-gauge models.
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Below
Request a Free Material Sample
Maximize paper capacity and minimize maintenance interruptions with the AA-HRTDx4E, our largest high-security toilet paper dispenser featuring a protected padlock system. Engineered for the most extreme public environments—like jails, shelters, and public transportation stations—this model houses four full toilet paper rolls while offering maximum tamper resistance. Its heavy-duty stainless steel construction, protected lock shroud, and sealed design help prevent vandalism, theft, and environmental exposure.
Product Features:
- Vandal Resistant Design: Fully enclosed with reinforced lock shroud to block prying tools and physical damage.
- Industrial Grade Construction: Made from 12 or 16 gauge stainless steel, built for high-abuse facilities.
- Made in USA: Fabricated with American-sourced stainless steel and precise TIG welds.
- Protected Padlock Enclosure: Locking shroud prevents tampering and guards the padlock from direct access.
- Drip Deflective Housing: Designed to protect paper rolls from cleaning spray or splashes.
- Surface Mounted: Installs via 3/8” mounting holes using heavy-duty hardware (not included).
- Multi-Roll Compatible: Holds four standard or coreless toilet paper rolls up to 5” in diameter.
- Corrosion Resistant: Optional 316L stainless steel available for salt-exposed or maritime use.
- 10-Year Anti-Vandal Warranty: Exclusive coverage for damage due to vandalism on 12-gauge models.
- Eco-Friendly Materials: Recyclable stainless steel meets LEED criteria for green buildings.
Dimensions & Weight:
Dimensions: 21½” W x 5¾” H x 5⅝” D
Weight: 14 lbs (12-gauge), 8 lbs (16-gauge)
Material & Finish:
Constructed from 12 or 16 gauge 304L stainless steel, with a marine-grade 316L option. All units feature a brushed Satin #4 finish for a modern, durable aesthetic.
Material Options:
- 12 gauge 304L Stainless Steel
- 16 gauge 304L Stainless Steel
- 12 gauge 316L Stainless Steel
Model Names:
- AA-HRTDx4E-304L-12g
- AA-HRTDx4E-304L-16g
- AA-HRTDx4E-316L-12g

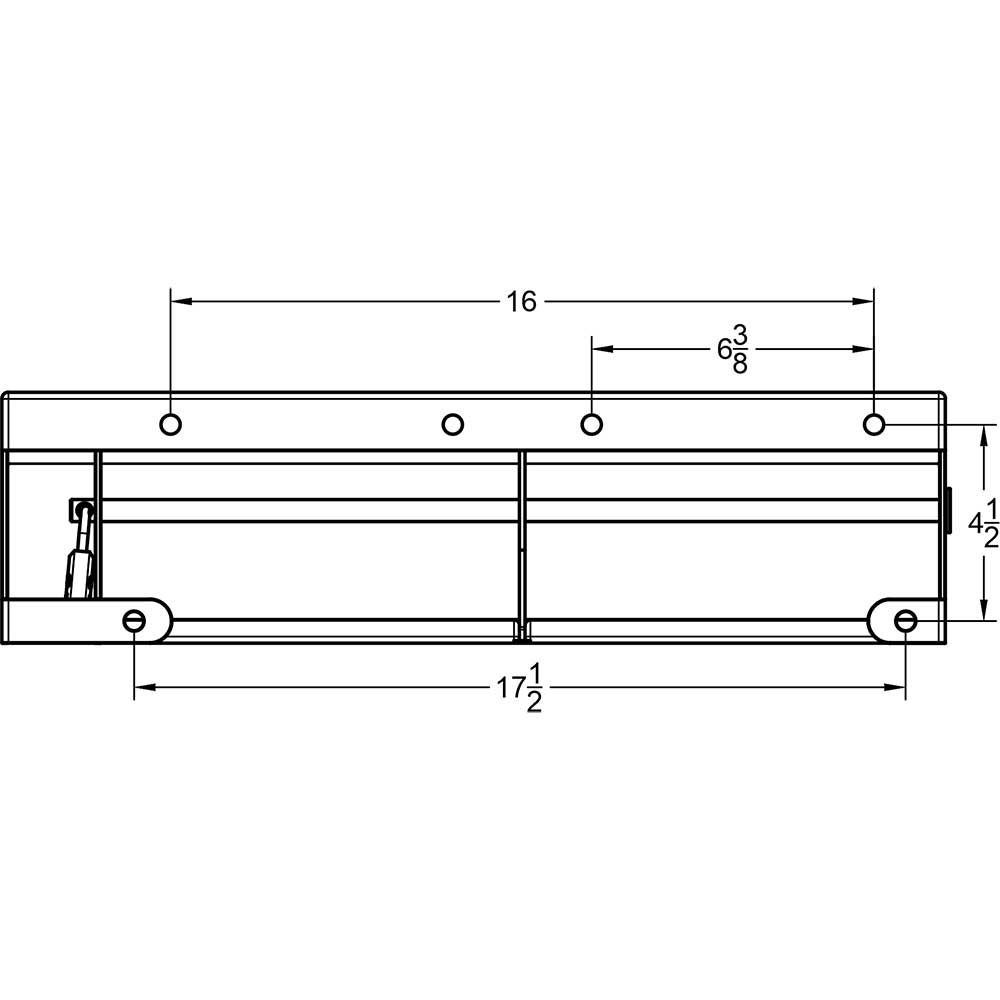

Mounting Instructions:
Install with 3/8” stainless steel anchors (not included). Use ¾” or greater back bracing or through-bolt when possible. Partitions may require specialty hardware such as T-nuts. All mounting holes must be used to qualify for warranty coverage.
Roll Compatibility:
Compatible with a wide range of commercial tissue products, including:
- Scott Professional Standard Roll – 100% Recycled
- Georgia Pacific Compact Coreless Recycled
- Scott Essential Coreless High Capacity
Compare to Competitor Models:
Unlike lower-grade dispensers such as the Royce Rolls Ringer MTP-4 or Bobrick B-264 that use 18-gauge steel and offer minimal warranty support, the AA-HRTDx4E is crafted from ultra-durable 12-gauge stainless steel and protected by a 10-year anti-vandal warranty. No other product in the industry offers this level of strength, longevity, and peace of mind.
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
