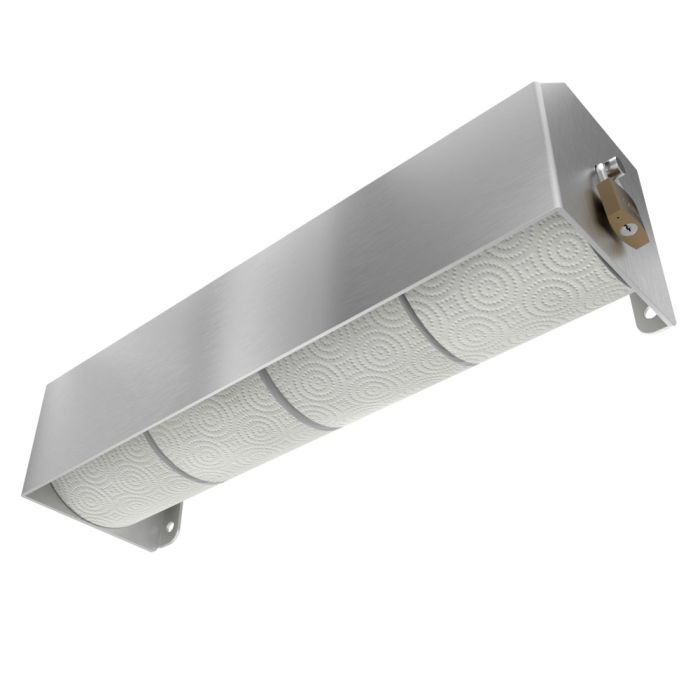

The AA-HRTD-LCx4E is a Vandal Resistant, ultra-durable, four-roll commercial toilet paper holder engineered for extreme vandal resistance in high-traffic, high-risk facilities. Built in the USA with industrial-grade 12 or 16 gauge stainless steel, this surface-mounted unit protects against tampering, theft, and corrosion. Compatible with both coreless and standard rolls up to 5" in diameter and backed by a 10-year anti-vandalism warranty on 12-gauge models.
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Below
Request a Free Material Sample
Designed to meet the needs of the most demanding public environments, the AA-HRTD-LCx4E securely stores up to four toilet paper rolls in a heavy-duty, vandal resistant enclosure. Constructed from thick 12 or 16 gauge stainless steel, this unit is ideal for use in jails, detention centers, transportation facilities, and schools. Its sealed and padlock-secured design prevents tampering and protects paper from moisture or spray. Made in the USA, this dispenser delivers uncompromising performance with reduced maintenance and maximum durability.
Product Features:
- Vandal Resistant Design: Built to deter tampering, theft, and damage in the toughest environments.
- Industrial Grade Heavy Duty: Fabricated from thick 12 or 16 gauge stainless steel for maximum strength.
- Made in USA: American craftsmanship ensures precision welds and consistent performance.
- Drip Deflective Housing: Shields internal paper rolls from cleaning sprays or water exposure.
- Surface Mounted: Installs securely to walls or partitions using 3/8” hardware (not included).
- Corrosion Resistant: Choose 316L marine-grade stainless for salt-exposed environments.
- Supports Multiple Paper Types: Holds both standard core and high-density coreless rolls up to 5" in diameter.
- Industry-Leading Warranty: 12-gauge models include a 10-year warranty that protects against vandalism when properly installed and locked.
- LEED Sustainable Materials: Made from recyclable stainless steel to support green building certifications.
Dimensions & Weight:
Dimensions: 19⅛” W x 5¾” H x 5⅝” D
Weight: 11 lbs (12-gauge), 6 lbs (16-gauge)
Material & Finish:
Available in 12 or 16 gauge 304L stainless steel and 12 gauge 316L marine-grade stainless steel. All units are finished with a Satin #4 brushed surface for a clean, professional appearance.
Material Options:
- 12 gauge 304L Stainless Steel
- 16 gauge 304L Stainless Steel
- 12 gauge 316L Stainless Steel
Model Names:
- AA-HRTD-LCx4E-304L-12g
- AA-HRTD-LCx4E-304L-16g
- AA-HRTD-LCx4E-316L-12g
Mounting Instructions:
Mount using 3/8” stainless steel anchoring hardware (not included). Recommended to use ¾” back bracing or through-bolting for optimal installation strength. For partition mounting, T-nuts or appropriate anchors may be required. Warranty coverage requires correct installation with all mounting points engaged.
Roll Compatibility:
Accepts four toilet paper rolls up to 5" diameter. Compatible with leading commercial paper products including:
- Scott Professional Standard Roll – 100% Recycled
- Georgia Pacific Compact Coreless Recycled
- Scott Essential Coreless High Capacity
Competitive Advantage:
Unlike competitor models such as the Royce Rolls Ringer TP-4 or Bradley 5425 that use lighter 18-gauge steel and offer limited warranties, the AA-HRTD-LCx4E uses solid 12-gauge stainless and is backed by a 10-year warranty specifically covering vandalism. If the unit is compromised, Vandal Stop will repair or replace it—no other manufacturer in the industry offers this level of commitment or durability.
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
