Product Overview

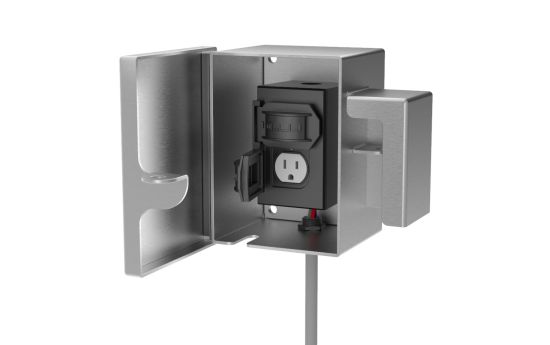

The AA-EB-3R is a legacy, compact yet rugged lock box designed to protect single-gang electrical outlets from vandalism, unauthorized access, and weather exposure. Fabricated in the USA from heavy-duty 12-gauge stainless steel, this box is built to safeguard outdoor or public-facing electrical access points in transit centers, correctional facilities, parks, and high-traffic areas. The integrated padlock shroud, removable backplate, spray deflection, and dual conduit access (rear and bottom) provide a highly functional and secure enclosure.
Note 1: Item replaced by the AA-EB-1G-PL.
Note 2: Padlock is not included.
Note 3: Receptacle outlet is not included with the housing. Most boxes on the market should fit, but for a known receptacle box that was tested to fit, click here.
UL Certification & Code Compliance
Our heavy-duty enclosures are engineered strictly as secondary architectural physical security hardware. The AA-EB-3R does not house electrical wiring; it is designed to be mounted directly to the structural wall over your existing, fully compliant, UL-listed electrical box and its associated UL-listed cover. Because our product operates entirely outside the electrical system, it does not require an independent UL electrical listing. To comply with local Authority Having Jurisdiction (AHJ) bonding requirements (such as NEC 250), the stainless steel enclosure can be readily bonded to the equipment grounding conductor by your installing electrician.
Key Features
- Vandal Resistant Construction: TIG-welded 12-gauge stainless steel housing with de-burred edges for maximum strength and safety.

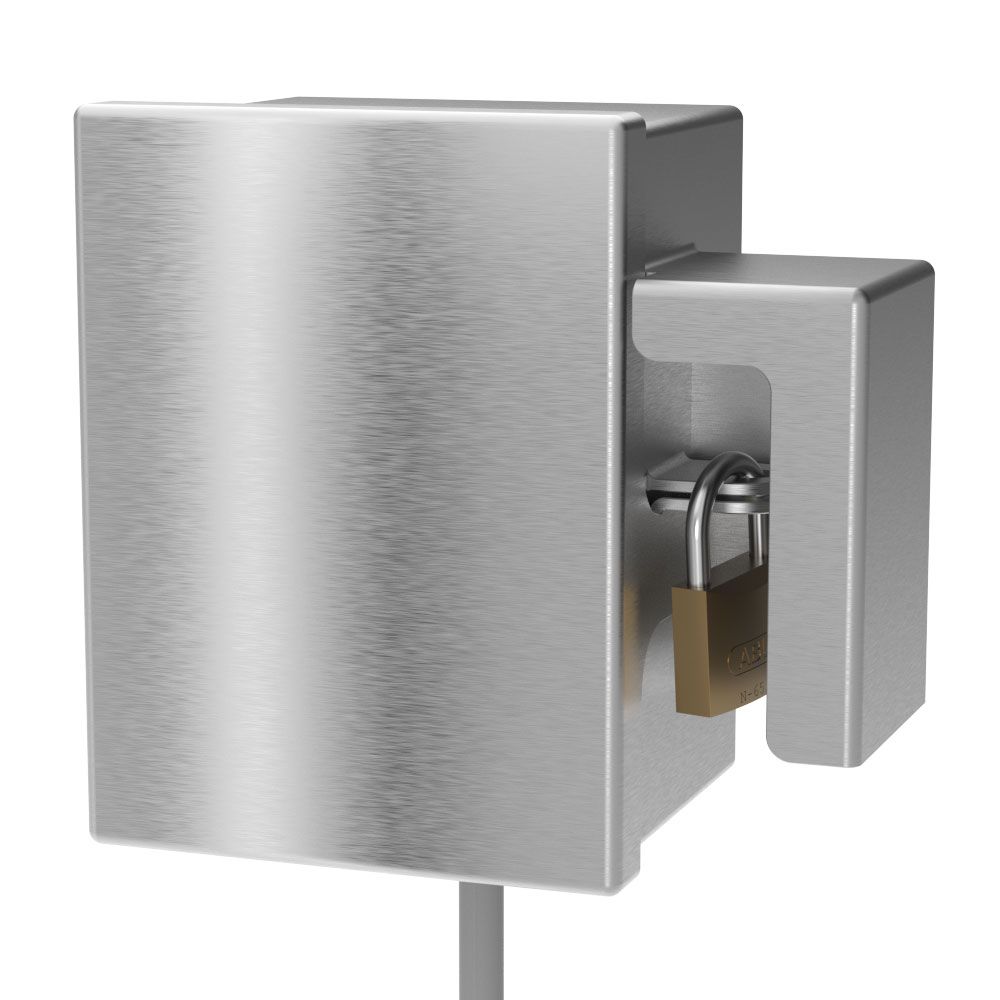

- Protective Padlock Shroud: Integrated steel cover shields the padlock from tampering, bolt cutters, and prying tools.
- Spray & Drip Deflection: Designed to protect interior outlets from rain, hose spray, or environmental exposure.
- Removable Backplate: Simplifies installation and outlet box alignment without compromising security.
- Conduit Ready: Accommodates ½" or ¾" conduit with up to 0.8" OD from either bottom or rear entry points.
- LEED Compliant: Manufactured from sustainable, recyclable stainless steel using American fabrication standards.
- Made in the USA: Expertly crafted for long-lasting durability and a professional finish.
Material & Warranty Options
Available in 12-gauge 304L stainless steel for general applications or 12-gauge 316L stainless steel for coastal/marine environments. All units come with a Satin #4 stainless finish for corrosion resistance and easy maintenance. When properly installed and locked, this unit is fully backed by our Anti-Vandalism Warranty (protects against prying by hand/body and heavy impact). For complete coverage details, please review our Warranty page.
Specifications & Compatibility
- Exterior Dimensions: 8 ⅛” W x 7 ½” H x 4 ¾” D
- Interior Dimensions: 5” W x 7” H x 4 ⅜” D
- Rear Opening: 3 ½” W x 5 ⅝” H
- Weight: 9 lbs
- Compatibility: Designed to fit most standard single-gang duplex receptacle boxes, including the Greenfield B23BRS Box and Greenfield CDRVPS Weatherproof Cover.
- Models: AA-EB-3R-304L-12g, AA-EB-3R-316L-12g
Installation Guidance
Secure fixture to wall with appropriate 3⁄8” stainless steel anchoring hardware (not provided) for optimal installation strength. Recommend 3⁄4” or greater back bracing for walls. Partitions may require T-nuts or other suitable anchoring devices. When possible it is recommended that units be through-bolted back to back providing optimal installation strength.
Specification Guide
Security Box shall be constructed with 12 gauge 304L or 12 gauge 316L Stainless Steel joined /w TIG welds and edges de-burred. Security Box shall not be cross-metal contaminated during manufacturing construction. Security Box shall provide protective cover against drip and spray. Protective shroud adds security for padlock. Security Box shall have 3⁄8” mounting holes. Security Box shall accommodate standard electrical outlet styles. 12 Gauge models shall include an Anti-Vandalism Warranty when properly installed and locked while in service. 316L SS shall be used for US Navy maritime use or if exposure to salt water is prevalent.
Product Demonstration
Note! This video is a demonstration of a similar model within our electrical enclosure line. It is provided to give you an idea of the heavy-duty features, material thickness, and construction techniques utilized in this product line.
- Material Quality [00:00:22]: A magnet test demonstrating the use of high-quality, non-magnetic stainless steel.
- Extreme Durability [00:02:39]: Stick around to the end of the video for a demonstration of a baseball bat impact test on our 12-gauge stainless steel material!
Warranty Guide, Care Instructions & Spec Sheet - See Spec Sheet Tab Above
Most of our products are Made to Order. When adding your item to the shopping cart there will be a "stock type" option indicating what is available for this particular item (see screenshot below). If an item is Stocked, a stocked option will appear, otherwise, only the "Made to Order" option will be visible. For our current estimated Production Lead times and related information see our Production Lead Times page for details.
Example Stock Type Selection Screenshot:
